Door/Window Casing 3" - 78

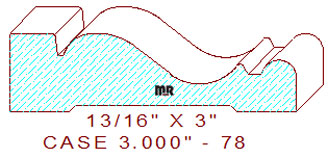

This elegant 3" - 78 door/window casing measures 3.000" wide by .813" thick. The beautiful profile comprises a 1/2" wide by 7/32" deep stepped fillet, connected to a 1/16" wide sunk fillet, attached to an elevation changing cyma reversa, with a 9/64" wide sunk fillet and a 3/16" radius half-circle positioned on the thin side of the pattern. The acrylic template is designed to accommodate widths up to 3-7/8" wide.

Try utilizing one of our many different size backbands on the left side of this pattern, create a stylish and unique door casing design for your beautiful home or office, simply alter the search parameters to the size backband you desire.
