Door/Window Casing 3" - 6
Door/Window Casing 3" - 6

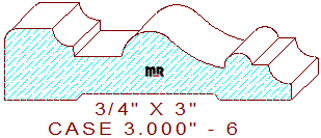

This conventional 3" - 6 door/window casing measures 3.000" wide by .750" thickness, authorizing the pattern to be machined from four quarter lumber. The customary profile comprises a 1/2" wide horizontal line segment with a 1/8" rounded edge on the top left, connected to a 13/64" radius cavetto with a 7/64" vertical drop in elevation and a 1/2" wide sunk fillet that transitions into a short down-sloping two tangent radius cyma reversa in the center, attached to a 9/32" wide half round bead that joins to an 11/64" flat line and a 13/64" cove with a 3/64" eased edge located on the right side of the design. We offer a quite a few colonial patterns in a variety of different widths, here are just a few alternative profiles in the same width you may want to review and consider,
door casing 3.000", window casing 3.000" - 56 and
door casing 3.000" - 75.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.718
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
