Door/Window Casing 3" - 5
Door/Window Casing 3" - 5

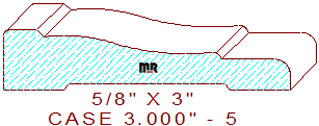

This time honored 3" - 5 door/window casing measures three inches wide by .625" thickness, allowing the detail to be milled from four quarter lumber. The classic profile has similar characteristics of the popular
WM 351 and
WM 356. The pattern is composed of a 27/64" wide flat line with a 1/16" eased outer, and beveled inside edge on the left, joined to a shallow two tangent radius cyma reversa with a 3/32" round-over in the middle, joined to a 23/32" wide line segment with a 5/32" rounded edge on the right side of the pattern. We off a couple of other similar profiles in the same design for your review and consideration,
door/window casing 3.000" - 9 and
door/window casing 3.000" - 53.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
