Door/Window Casing 2-7/8" - 6
Door/Window Casing 2-7/8" - 6

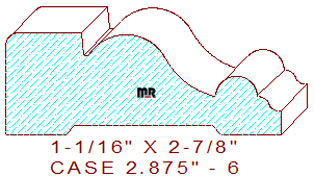

This colonial 2-7/8" - 6 door/window casing measures 2.875" width by 1.062" thickness, requiring a 3-1/8" wide blank of five-quarter lumber for machining on an industrial moulder. The traditional profile contains a 13/16" broad flat line with a 1/8" eased outer edge on the top left. The horizontal line joins a 15/64" deep by 1/16" wide sunk fillet to a graceful two-tangent radius s-shaped curvature in the center. The remaining portion of the pattern consists of a 7/32" radius half-circle and a tiny ogee on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.875
Depth of Cut: 0.812
Bottom Cutter Head
Width: 2.875
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
