Door/Window Casing 2-3/4" - 46
Door/Window Casing 2-3/4" - 46

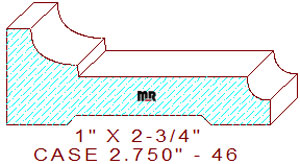

This exquisite 2-3/4" - 46 door/window casing measures 2.750" width by 1.000" thickness, necessitating a 3" wide blank of five-quarter lumber for milling on an industrial moulder. The attractive profile contains a 1/4" broad flat line joined to a two-tangent radius elliptical-shaped cove with a 1/8" vertical step on the top left. The center retains a 1-3/4" broad line segment connected to a 13/64" cove on the pattern's right edge. The left edge is square for the use of any of our backbands; here is one you may want to review and consider,
backband 2.125" - 2. Review our commentary on
custom-made pressure shoes. This helpful step-by-step article will help you mill this profile to perfection.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.750
Depth of Cut: 0.703
Bottom Cutter Head
Width: 2.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
