Door/Window Casing 2-3/4" - 45
Door/Window Casing 2-3/4" - 45

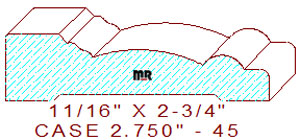

This stylish 2-3/4" - 45 door/window casing measures 2.750" width by .687" thickness permitting the use of a three-inch wide blank of four-quarter lumber for milling on an industrial moulder. The decorative profile comprises a 33/64" broad fillet and a short downsloping angled line with a 3/64" rolled outer edge on the top left. The short beveled line connects three tangent radiuses to form a wave-like pattern joined to a 1-15/32" convex arc in the center. The remaining portion connects a 1/4" radius half-circle to a 17/64" flat line with a 3/32" eased edge on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.750
Depth of Cut: 0.593
Bottom Cutter Head
Width: 2.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
