Bed Mould 4-3/4"

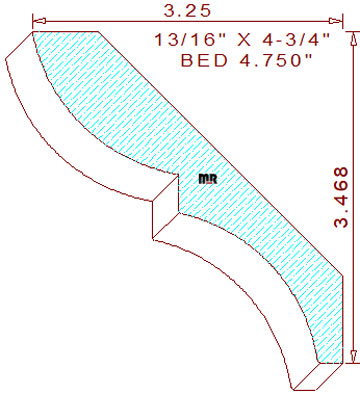

This appealing bed mould 4-3/4" measures 4.750" wide by .812" thickness, allowing the pattern to be milled sprung (laying horizontally flat) out of four-quarter lumber. The captivating supporting profile is comprised of a 1-7/8" radius convex semicircular arc on the top left, connected to a 13/32" tall vertical line segment in the center, joined to a 1-55/64" cove with a 17/64" wide horizontal line on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these clear back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3-15/32" tall with a projection of 3-1/4" wide.
