Bed Mould 2-15/16"
Bed Mould 2-15/16"
This

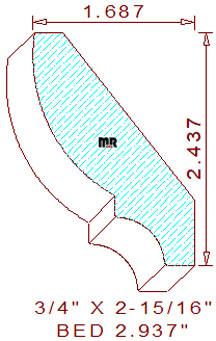

eye-catching bed mould 2-15/16" measures 2.937" wide by .750" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The gorgeous supporting profile is composed of a 1-11/16" radius convex semicircular arc on the top left, connected to a 7/32" tall vertical fillet in the center, joined to a 1/2" cove with a 5/16" wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at
thirty-eight and
fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-7/16" tall with a projection of 1-11/16" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.176
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.543
Top Cutter Head
Width: 2.937
Depth of Cut: 0.572
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
