Bed Mould 2-1/2"
Bed Mould 2-1/2"

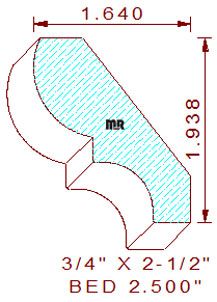

Bed moulds are transition patterns. This pattern measures 2-1/2" wide by 3/4" thick. The top of the profile is generally a quarter-round bead that would lead your eye to the next element in a built-up cornice or crown design. This profile consists of a 3/4" radius arc at the top, a 1/4" tall fillet in the center, and a 1/2" cavetto with an attached horizontal fillet in the design's lower right corner. The spring angles are set at 38/52 degrees, installed height becomes 1-15/16" tall, with a projection of 1-41/64" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.273
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.388
Top Cutter Head
Width: 2.500
Depth of Cut: 0.527
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
