Baseboard 8-5/8" - 21
Baseboard 8-5/8" - 21

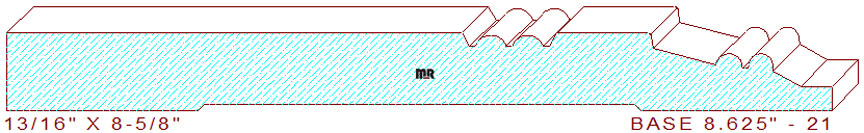

This distinctive 8-5/8" - 21 base moulding measures 8.625" wide by .812" thick. The profile is comprised of a 4-3/4" wide straight line, connected to two recessed 11/64" radius half round circles, divided by 1/16" wide sunk fillets and flanked by small chamfers, attached to a 1" wide straight line with a 3/64" radius edge that's joined to an angled line and two more half round circles, with a chamfer and 5/16" straight line located at the top of the pattern. We have a few similar profiles in different size widths for your review and consideration,
baseboard 7.812", baseboard 8.250" - 3, baseboard 8.625" - 25, and
baseboard 8.625" - 54.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.625
Depth of Cut: 0.563
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
