Baseboard 8-3/8"
Baseboard 8-3/8"

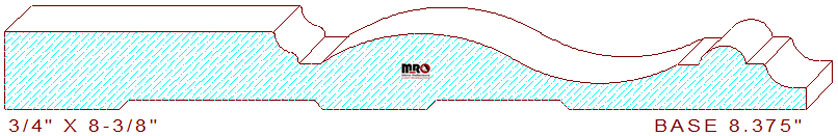

This stylish traditional 8-3/8" base moulding measures 8.375" width by .813" thickness, requiring an 8-5/8" wide blank of four-quarter lumber for milling on an industrial moulder. The old-world pattern comprises a 2-13/16" broad flat line merged with a 13/64" cove on the top left. The semicircle connects to a 15/64" sunken fillet joined to a large free-flowing s-shaped curvature in the center. The remaining portion contains two tangent radii thumbnail-shaped convex arc flanked by 7/32" broad line segments with a 9/32" cove on the design's right edge.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.375
Depth of Cut: 0.583
Bottom Cutter Head
Width: 8.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
