Baseboard 8-1/4" - 7
Baseboard 8-1/4" - 7

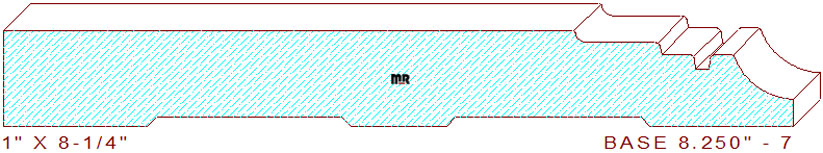

This unique 8-1/4" - 7 base moulding measures 8.250" wide by 1.000" thickness, allowing the pattern to be machined out of five-quarter lumber. The designer profile is composed of a 5-31/32" vast portion on the top left center. It's attached to a shallow 59/64" wide cong'e with a 1/8" vertical step joined to an 11/32" wide by 1/8" deep drop in elevation. It is connected to a 9/64" wide sunk fillet transitioning into a 17/64" raised fillet with eased edges and an 11/16" cove on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.250
Depth of Cut: 0.719
Bottom Cutter Head
Width: 8.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
