Baseboard 8" - 87
Baseboard 8" - 87

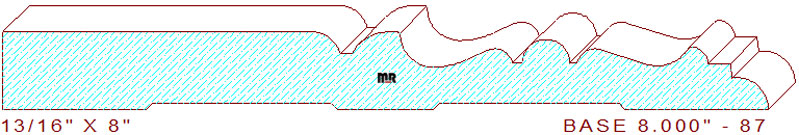

This opulent 8" - 87 base moulding measure 8.000" wide by .812" thickness, requiring an 8-1/4" wide blank of four-quarter lumber for milling on an industrial moulder. The majestic profile contains a 3-17/32" broad line segment with a 5/16" rolled inner edge on the top left. The rollover connects to a 1/8" sunk fillet joined to a beak-shaped convex arc that transitions into a beautiful two-tangent radius s-shaped curvature. The curvature attaches to a half-round bead flanked by a sunken line segment in the center. The remaining portion of the pattern retains a smaller, less defined mirror image of the beak design listed before. It merges with a small perpendicular step and a 21/64" radius quarter round on the design's right side. We offer many different styles of door casings to complement this profile; here is one you may want to review and consider,
symmetrical casing 5.000" - 5.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 8.000
Depth of Cut: 0.813
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
