Baseboard 7-1/2" - 33
Baseboard 7-1/2" - 33

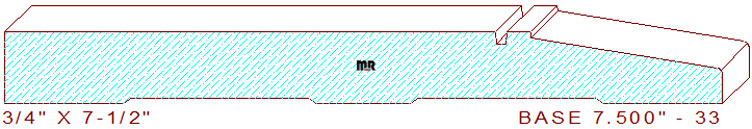

This attractive 7-1/2" - 33 base moulding measures 7.500" wide by .750" thickness, authorizing the detail to be machined from four-quarter lumber. The custom pattern is comprised of a 5-1/8" broad horizontal line on the top left, attached to a 1/8" wide by 1/8" deep saw kerf type groove, joined to a 1/4" wide line segment with a 1/16" vertical drop in elevation, merged to a 9.139-degree angled line with a 1/16" rounded edge that transforms the thickness dimension to 3/8" on the right side of the design. We offer many door casing profiles that will complement this mopboard design; here are just a few you may want to review and consider,
door casing 3.500" - 2 and
door casing 3.500" - 57.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.500
Depth of Cut: 0.593
Bottom Cutter Head
Width: 7.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
