Baseboard 7-1/2" - 24
Baseboard 7-1/2" - 24

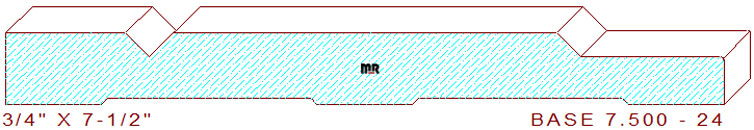

This modern 7-1/2" - 24 base moulding measures 7.500" wide by .750" thickness, allowing the detail to be milled from four quarter lumber. The contemporary profile is composed of a 1-1/4" wide flat line on the left, connected to a 1/2" wide v-groove derived from forty-five degree angles that join to a four inch wide flat line in the center, attached to a 1/4" wide by 1/4" deep angled line that merges with a 1-1/2" wide line with a 3/64" eased edge, leaving a 1/2" thickness dimension on the right side of the pattern. Be creative, try one of our many
panel molds or rabbeted
base caps at the top of the detail, invent your own custom profile, the possibilities are endless.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.500
Depth of Cut: 0.446
Bottom Cutter Head
Width: 7.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
