Baseboard 7-1/2" - 23
Baseboard 7-1/2" - 23

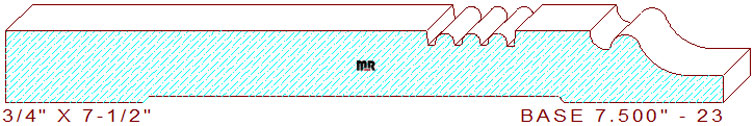

This reeded 7-1/2" - 23 base moulding measures 7.500" width by .750" thickness enabling the use of four quarter lumber for machining on an industrial moulder. The beaded profile contains a 4-13/32" broad flat line on the top left. The line joins three recessed half-round beads divided by four 5/64" wide sunk fillets, connected to a 25/32" flat line in the center. The remaining portion consists of a 3/16" cove attached to a two tangent radius s-shaped curvature on the design's right side.
Try one of our fancy base shoes on the bottom portion of this pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.500
Depth of Cut: 0.465
Bottom Cutter Head
Width: 7.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
