Baseboard 7-1/4" - 8
Baseboard 7-1/4" - 8

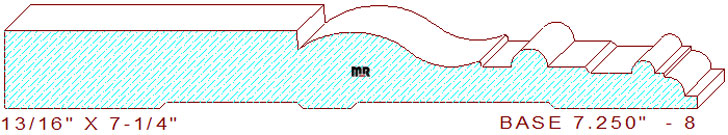

This intricate 7-1/4" - 8 base moulding measures 7.250" wide by .812" thickness, permitting the detail to be machined out of four-quarter lumber. The sophisticated profile is composed of a 3-1/16" broad flat line with a 3/16" vertical drop in elevation on the left, joined to a two tangent radius cyma reversa with a tiny rounded edge and a 5/16" wide sunk fillet in the center, merged with a 3/8" wide half circle and two stepped fillets, attached to a tiny half bead with a 3/16" radius ovolo on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.683
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
