Baseboard 7-1/4" - 58
Baseboard 7-1/4" - 58

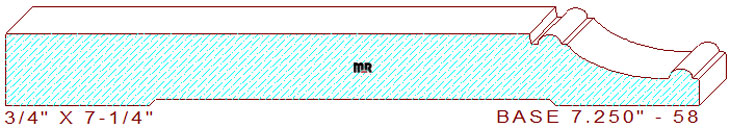

This beautifully unique 7-1/4" - 58 base moulding measures 7.250" wide by .750" thickness, enabling the pattern to be machined from four-quarter lumber. The custom profile is composed of a 5-15/32" broad flat line on the top left, attached to a 5/64" wide by 7/64" deep sunk fillet joined to an elliptical shaped three tangent radii half circle bordered by a 1/16" broad line in the center, connected to a 1-11/16" concave semicircle merged to another oval shaped half round bead and a 5/64" flat line with a 3/64" eased edge, leaving a 9/32" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.625
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
