Baseboard 7-1/4" - 35
Baseboard 7-1/4" - 35

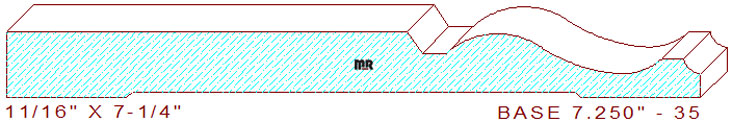

This aesthetically appealing 7-1/4" - 35 base moulding measures 7.250" wide by .687" thickness. The good-looking profile is comprised of a 4-3/16" wide horizontal line attached to a 5/32" wide chamfered edge with a 1/4" wide sunk fillet, joined to a three tangent radius cyma reversa that's recessed by .020" for sanding purposes. It's connected to a 15/64" wide raised fillet with a 13/64" cove, leaving a 1/4" thickness dimension at the top of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.441
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
