Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 7-1/4" - 34

Baseboard 7-1/4" - 34

Baseboard 7-1/4" - 34

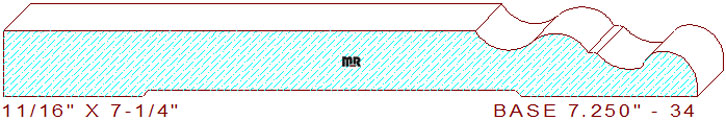

This creative 7-1/4" - 34 base moulding measures 7.250" wide by .687" thickness. The designer profile is comprised of a 4-15/16" broad horizontal line connected to short s-shaped curvature, attached to a tiny flat fillet transitioning into a 27/64" radius cove, joined to a two tangent radius elliptical shaped convex arc on the design's right edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.250
Depth of Cut: 0.656
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$475.00
$443.00
Total:
$918.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$507.00
$475.00
Total:
$982.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$539.00
$507.00
Total:
$1046.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
