Baseboard 7-1/8" - 3
Baseboard 7-1/8" - 3

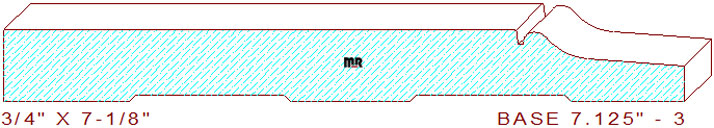

This creative 7-1/8" - 3 base moulding measures 7.125" width by .750" thickness, requiring a 7-3/8" wide blank of four-quarter lumber for milling on an industrial moulder. The stylish profile contains a 5-3/8" broad flat line with a 5/32" vertical step on the top left center. The vertical line connects to a two-tangent radius s-shaped curvature that transitions down to a 3/8" thickness on the design's right side. We offer many style base caps for this profile; here is one you may want to review and consider,
base cap 2.250".
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.125
Depth of Cut: 0.389
Bottom Cutter Head
Width: 7.125
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
