Baseboard 7-1/8" - 2
Baseboard 7-1/8" - 2

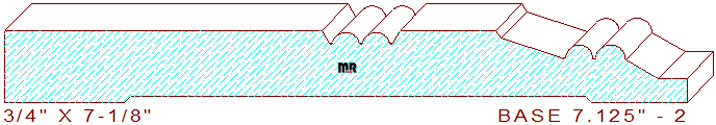

This distinguished 7-1/8" - 2 base moulding measures 7.125" width by .750" thickness, authorizing the use of four-quarter lumber for milling on a commercial moulder. The fancy designed beaded profile contains a 3-5/16" broad line segment on the top left. The flat line joins a 13/16" wide section consisting of two recessed half-circles flanked by upsloping beveled lines in the center. The remaining portion incorporates a one-inch flat area with a dual angled edge merged with two additional beads sloping downward to a 19/64" wide fillet, leaving a 1/4" thickness dimension on the design's right side. We offer a similar profile in the same width for your review and consideration,
baseboard 7.125" - 1.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.500
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
