Baseboard 7" - 8

Baseboard 7" - 8

Baseboard 7" - 8

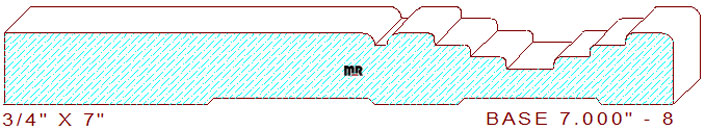

This southwestern 7" - 8 base moulding measures 7.000" wide by .750" thickness, permitting the pattern to be machined out of four-quarter lumber. The American Indian swayed profile is composed of a 3-7/8" broad flat line segment with a 1/8" rounded inside edge on the top left, joined to a 1/8" wide sunk fillet and a 1/2" raised fillet with 1/8" & 1/16" round corners, merged with a series of three bidirectional steps with a 1/2" wide sunk fillet in the center. It's attached to another 1/2" raised fillet with 1/8" & 1/16" eased edges on the right side of the pattern. We offer many profile designs with Indigenous American overtones. Here are just a few you may want to review and consider, baseboard 5.500" - 132, symmetrical door casing 3.000" - 24 and door/window casing 3.000" - 44.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$430.50
Total:
$861.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$492.50
$492.50
Total:
$985.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
