Baseboard 7" - 72
Baseboard 7" - 72

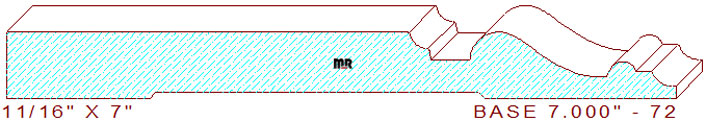

This aesthetically pleasing 7" - 72 colonial base moulding measures 7" width by .687" thickness, requiring a 7-1/4" wide blank of four-quarter lumber for milling on an industrial moulder. The traditional profile contains a 4-3/16" broad flat section on the top left. The line connects to an 11/64" cove with a small vertical step, joined to a 13/32" wide sunken fillet in the center. The fillet transitions into a graceful two tangent radius s-shaped curvature merged with a decorative half-round bead, small line segment and a 7/32" cavetto leaving a 1/8" thickness dimension on the design's right side. We also offer a matching door/window casing for your review and consideration,
door casing 3.500" - 34.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.562
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
