Baseboard 7" - 69
Baseboard 7" - 69

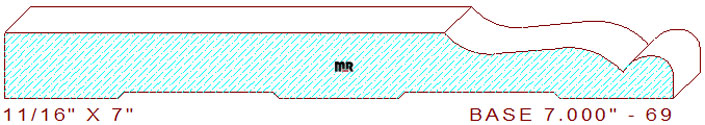

This fashionable 7" - 69 base moulding measures 7.000" width by .687" thickness, requiring a 7-1/4" wide blank of four-quarter lumber for milling on an industrial moulder. The custom profile contains a 4-39/64" broad flat line on the top center. The flat line connects to an elongated s-shaped curvature merged with a two-tangent radius half-round bead on the design's right side.
This professionally drafted template ready computer-aided drafting (CAD) drawing exchange file (DXF) (purchase in the box below) contains two high precision template designs to create profile cutters for this exquisite baseboard detail. One for machining the entire width and the other for milling just the profile portion of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.618
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
