Baseboard 6-1/2" - 33
Baseboard 6-1/2" - 33

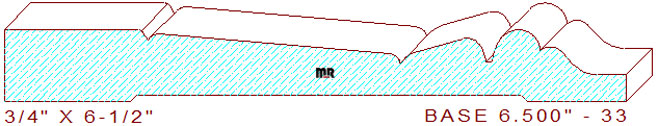

This beautiful ornate 6-1/2" - 33 base moulding measures 6.500" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The striking profile is composed of a 1-1/2" broad line segment with a 1/16" beveled inside edge on the top left. It's connected to a 2-41/64" wide five degree down-sloping beveled line with 1/8" eased edges in the center. It's attached to an up-sloped angled area with radius edges that joins to a small sunk fillet and a thumbnail-shaped bead with a two-tangent radius cyma reversa on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.469
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
