Baseboard 6-1/2" - 32
Baseboard 6-1/2" - 32

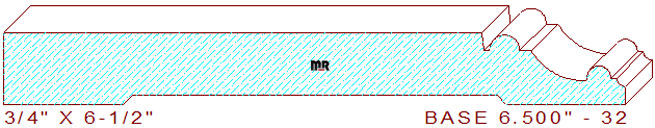

This beautifying 6-1/2" - 32 base moulding measures 6.500" width by .750" thickness, requiring a 6-3/4" wide blank of four-quarter lumber for milling on an industrial-grade molder. The astonishing profile contains a five-inch wide flat section with a 3/16" vertical step on the top center. Connected to a 1/16" sunk fillet merged with a 5/16" broad half circle and a 1/8" wide line segment. The short flat line attaches to a 5/8" radius cove joined to a 1/4" wide bead and a 1/16" fillet with a 3/32" cove, leaving a 3/16" thickness dimension on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.562
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
