Baseboard 6-1/2" - 23
Baseboard 6-1/2" - 23

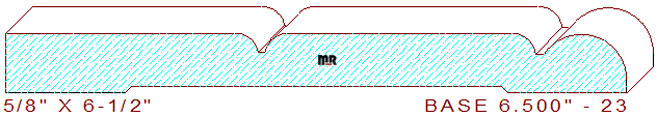

This creative 6-1/2" - 23 base moulding measures 6.500" width by .625" thickness, necessitating a 6-3/4" wide blank of four-quarter lumber for milling on an industrial moulder. The designer profile comprises a 2-41/64" broad flat line with a 1/4" rolled inside edge on the top left. The radius connects to a 5/64" wide sunk fillet attached to a 2-13/16" raised section with two additional 1/4" rounded edges in the center. The remaining portion consists of a 3/32" broad sunk fillet with a 15/32" convex arc on the design's right edge.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.500
Depth of Cut: 0.500
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
