Baseboard 6-3/8" - 5
Baseboard 6-3/8" - 5

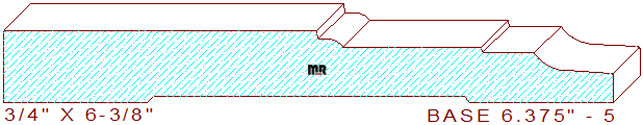

This custom 6-3/8" - 5 base moulding measures 6.375" wide by .750" thickness, allowing the pattern to be machined out of four-quarter lumber. The designer profile is composed of a 3-9/32" broad flat line with a 3/32" vertical drop in elevation in the left center, merged with a 17/16" flat line with a 3/16" radius arc that joins to a 1-29/64" horizontal line with a 1/16" vertical step, connected to a 5/16" line segment with a 7/16" cove tangent off of a down-sloping angled line with a 3/64" eased edge on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.375
Depth of Cut: 0.625
Bottom Cutter Head
Width: 6.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
