Baseboard 6-1/4" - 10
Baseboard 6-1/4" - 10

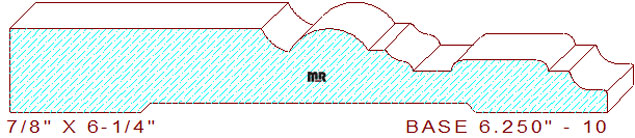

This intricate 6-1/4" - 10 base moulding measures 6.250" wide by .875" thickness. The ornate profile is comprised of a 2-5/8" wide horizontal line connected to a 7/16" radius cove on the top left. It's joined to a 31/64" radius half-round arc, a 3/16" wide horizontal line and small cyma recta, attached to a 3/8" wide sunk fillet in the center. The recessed area connects to a 1" wide raised fillet with 1/8" eased edges and a 1/4" wide line connected to a 15/64" radius cong'e on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.250
Depth of Cut: 0.812
Bottom Cutter Head
Width: 6.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
