Baseboard 6" - 17

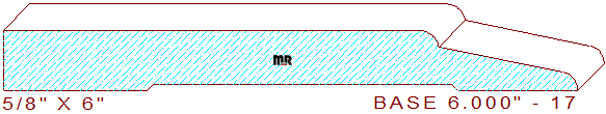

This modern 6" - 17 base moulding measures 6.000" width by .625" thickness, requiring a 6-1/4" wide blank of four-quarter lumber for milling on a commercial molder. The basic profile contains a 4-35/64" broad flat line with a 13/64" rolled inner edge on the top center. The rollover connects to an 11.595-degree angled line with a 3/16" radius edge on the design's right side.

Try one of our embellishing base shoes on the bottom portion of this pattern. Find an irresistible, compelling design by simply changing the width search parameters to any desired size in the search boxes provided. Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these milling operations.
