Baseboard 6" - 164
Baseboard 6" - 164

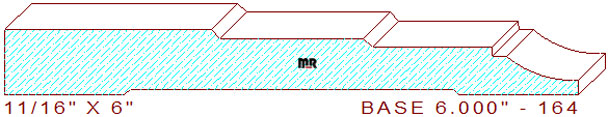

This attractive 6" - 164 base moulding measures 6.000" width by .687" thickness, requiring a 6-1/4" wide blank of four-quarter lumber for milling on a commercial molder. The tiered profile comprises a 2-5/32 broad line segment with a 3/32" vertical step on the top left. The small angled line connects to a 1-1/2" flat bar with an additional forty-five-degree drop in elevation in the center. The remaining portion of the pattern retains a 1-1/4" fillet joined to a 5/32" wide by 3/32" deep perpendicular notch with a 1-3/32" concave semicircle, leaving a 5/32" thickness on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.530
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
