Baseboard 6" - 152

Baseboard 6" - 152

Baseboard 6" - 152

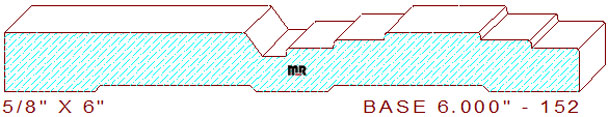

This southwestern 6" - 152 baseboard moulding measures 6.000" wide by .625" thickness, allowing the pattern to be machined out of four-quarter lumber. The southwest-themed profile is composed of a 2-11/16" wide flat line segment with a 1/4" deep beveled edge on the top left, joined to a 1/4" wide sunk fillet in the center, the upper symmetrical portion on the right consists of a 1-7/16" wide by 5/64" tall raised fillet with 3/64" round-overs in the center, flanked by a 17/32" wide by 5/64" deep step, and a 1/2" wide line segment with 3/64" rolled edges leaving a 29/64" thickness dimension on the right side of the design. We offer the matching casing/chair rail for this pattern for your review and consideration, symmetrical casing 3.500" - 8, and many alternative baseboard profiles as well, here is a stylish pattern you may want to take a look at, baseboard 5.500" - 132.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.363
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$407.50
Total:
$815.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$434.50
Total:
$869.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
