Baseboard 6" - 150
Baseboard 6" - 150

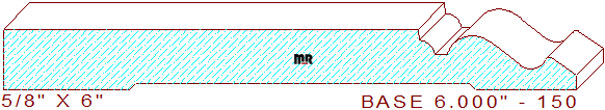

This creatively elegant 6" - 150 base moulding measures 6.000" wide by .625" thickness, permitting the pattern to be milled from four-quarter lumber. The visually striking profile is comprised of a 4-11/32" wide flat line segment on the top left, attached to a 7/64" vertical drop in elevation with a 3/16' quarter round bead and a 1/8" wide sunk fillet creating the ovolo, merged with a 9/32" convex arc tangent to a short angled line that joins to a 3/16" concave semicircle and an 11/32" wide splay faced angled line, leaving a 9/64" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.518
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
