Baseboard 6" - 147

Baseboard 6" - 147

Baseboard 6" - 147

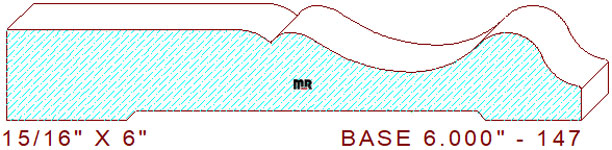

This free-flowing 6" - 147 base moulding measures 6.000" width by .937" thickness, requiring a 6-1/4" wide blank of five-quarter lumber for milling on a commercial molder. The wave-like profile contains a 2-3/4" broad flat line with a 1/2" rolled inside edge on the top left. The rollover connects to a 1/4" convex arc tangent to a 1-23/32" and one-inch scotia in the center. The concave semicircle transitions into a 13/32" half-round tangent top, a 1/2" cove on the design's right side.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.781
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$380.50
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$407.50
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$434.50
Total:
$896.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
