Baseboard 6" - 135
Baseboard 6" - 135

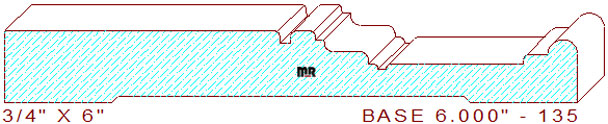

This ornate 6" - 135 base moulding measures 6.000" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The decorative profile comprises a 2-7/8" wide flat area joined to a 1/8" wide by 1/8" deep sunk fillet with 1/16" eased edges on the top left. It's attached to a 17/64" wide by 3/32" tall raised fillet with a 3/32" flat line merged with a bidirectional cong'e in the center. That's connected to a 1/16" quarter-round arc and a 5/64" sunk fillet that transforms into a 1-7/16" horizontal line segment with a 1/4" wide by 3/32" tall upward step and a 5/16" wide half-round circle on the right side of the design. We offer many door casing patterns to compliment this detail, this one specifically designed to match this profile,
door casing 4.000" - 82.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.406
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
