Baseboard 5-3/4" - 31
Baseboard 5-3/4" - 31

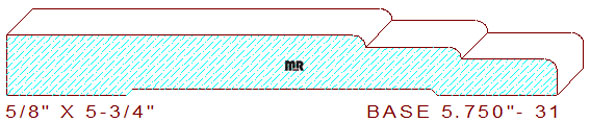

This tiered 5-3/4" - 31 base moulding measures 5.750" wide by .625" thickness. The stepped profile is comprised of a 3-3/4" wide horizontal line with an eighth-inch round over, attached to a two 1" wide by 1/8" deep steps with a 1/8" radiuses used in the transitions leaving a 3/8" thickness dimension on the small side of the detail.
We have a few other similar baseboard and casing designs that will complement this stepped design. Here are a few of them for your review and consideration, door casing 2.250" - 35, door casing 3.250" - 71, baseboard 5.250" - 37, baseboard 5.750" - 8 and baseboard 5.750" - 30.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 0.499
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
