Baseboard 5-1/2" - 95
Baseboard 5-1/2" - 95

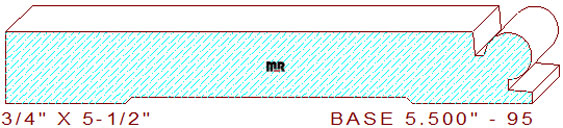

This pencil bead 5-1/2" - 95 base moulding measures 5.500" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The stylish design could also be utilized as a beautiful crown backer profile. It is composed as a 4-7/8" broad flat line on the top, connected to a one half inch wide pencil bead flanked by 1/8" wide by 1/4" deep sunk fillets on each side leaving a 1/8" thickness dimension on the lower right side of the pattern, the bead was intentionally recessed by .010" to allow for sanding after the machining process.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.250
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
