Baseboard 5-1/2" - 94
Baseboard 5-1/2" - 94

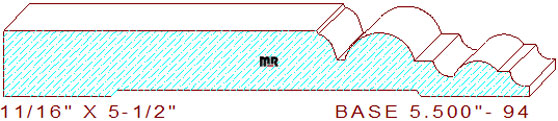

This classy 5-1/2" - 94 baseboard measures 5.500" width by .687" thickness, enabling a 5-3/4" blank of four-quarter lumber for machining on a commercial-grade molder. The fancy profile contains a 3-1/2" broad flat line segment with a 3/64" slightly tapered and rounded inside edge on the top center. The rounded corner merges with a miniature 5/64" sunk fillet joined to a 47/64" half-circle in the center. The remaining portion consists of a 13/64" horizontal line attached to a 3/16" cove merged with a 29/64" broad bead that joins a 9/64" flat fillet with a 9/64" radius cove on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.579
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
