Baseboard 5-1/2" - 81

Baseboard 5-1/2" - 81

Baseboard 5-1/2" - 81

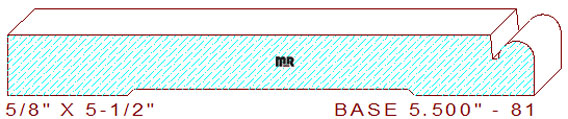

This half bead 5-1/2" - 81 baseboard measures 5.500" wide by .625" thickness. The profile is comprised of a 5-1/16" wide by 1/4" deep stepped line, attached to a 1/16" wide sunk fillet that transitions into a recessed (for sanding) 3/8" wide half circle on the right side of the pattern. We have a few other options with similar design characteristics for your review and consideration, door casing 4.000" - 15, baseboard 5.500" - 26, baseboard 5.500" - 84, baseboard 5.500" - 86 and baseboard 5.500" - 117.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.406
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063

Grades of Steel

in-depth descriptions

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.50
$355.50
Total:
$711.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$405.50
Total:
$811.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
