Baseboard 5-1/2" - 70
Baseboard 5-1/2" - 70

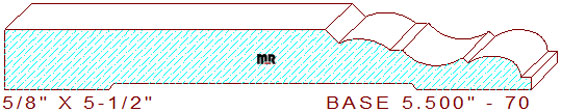

This decorative 5-1/2" - 70 base moulding measures 5.500" width by .625" thickness, allowing the use of four-quarter lumber for milling on an industrial moulder. The beautiful detail contains a 3-1/2" flat line and a 9/64" beveled edge in the top center. Connected to a 1/2" radius convex arc merged with a 9/64" fillet and a 15/32" concave curvature. An additional beveled edge joins to a two-tangent radius elliptical-shaped arch and a 7/64" flat line segment, leaving a 1/8" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
