Baseboard 5-1/2" - 58
Baseboard 5-1/2" - 58

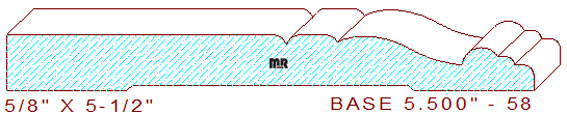

This fine-looking 5-1/2" - 58 base moulding measures 5.500" wide by .625" thickness. The beautiful detail comprises a 2-9/16"broad line with a 9/64" inner eased edge connected to a 17/32" raised fillet with 9/64" rolled corners. It transitions into a shallow cyma reversa attached to a half-round circle with two stepped edges at the top of the pattern, adding excellent symmetry to the overall design.
The professional cad-produced dxf file contains two high-precision template designs to create cutters for this specific detail. One for machining the entire pattern and the other for milling just the profile portion of the design.
The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.562
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
