Baseboard 5-1/2" - 113
Baseboard 5-1/2" - 113

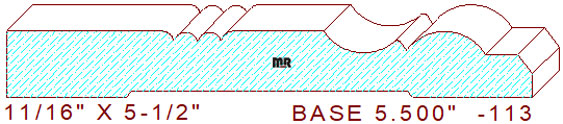

This stylish baseboard 5-1/2" - 113 measures 5.500" wide by .688" thickness. The unique lower portion of the profile is comprised of a 1-3/4" broad straight line with a 1/8" radius edge that transitions into two recessed 1/8" radius half-round circles joined to another 1/8" radius edge attached to a 1-1/16" broad line. The upper right section of the pattern consists of a 1/2" radius concave arc with a beveled edge, connected to a 1/2" radius convex semicircle joined to a 3/8" wide fillet with a chamfered edge.. We offer another similar profile for your review and consideration,
baseboard 5.500" - 114.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.531
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
