Baseboard 5-3/8" - 15
Baseboard 5-3/8" - 15

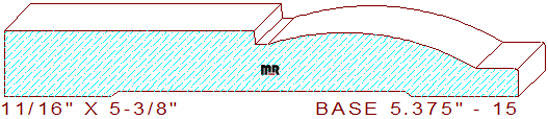

This fancy 5-3/8" - 15 base moulding measures 5.375" wide by .687" thickness, permitting the pattern to be machined out of four-quarter lumber. The unique profile is composed of a 2-5/8" full-flat line with a 9/64" vertical step on the top left center, attached to a 1/8" wide sunk fillet that merges with a 2-11/16" convex semicircular arc and a 7/16" line segment with a 3/64" eased edge, leaving a 19/64" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.375
Depth of Cut: 0.575
Bottom Cutter Head
Width: 5.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
