Baseboard 5-1/4" - 74
Baseboard 5-1/4" - 74

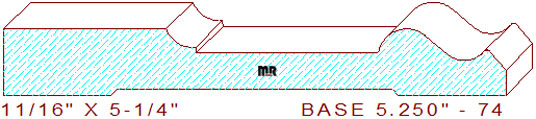

This visually appealing 5-1/4" - 74 base moulding measures 5.250" wide by .687" thickness, enabling the detail to be machined out of four-quarter lumber. The attractive profile is composed of a 1-45/64" broad flat line segment on the top left, connected to a 9/32" cove with a 1/16" vertical drop in elevation joined to a 1-29/32" wide sunk fillet in the center, merged with a graceful two tangent radius cyma reversa with a 19/64" wide splay faced beveled line, leaving 1/4" thickness dimension on the right side of the design.
""""""""
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
