Baseboard 5-1/4" - 63
Baseboard 5-1/4" - 63

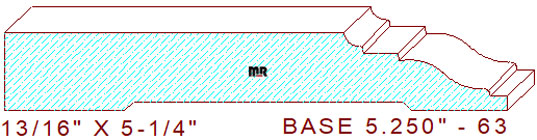

This fancy 5-1/4" - 63 base moulding measures 5.250" width by .812" thickness, enabling a 5-1/2" wide blank of four-quarter lumber for milling on an industrial-grade molder. The elegant profile contains a 3-35/64" broad flat line with a 5/32" cove on the top center. The concave semicircle joins a 3/32" vertical step that merges to a 3/8" wide fillet and a graceful two tangent radius s-shaped curvature with a 3/16" broad line, leaving a 5/32" thickness dimension on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.662
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
