Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 5-1/4" - 44

Baseboard 5-1/4" - 44

Baseboard 5-1/4" - 44

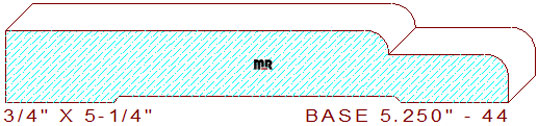

This contemporary 5-1/4" - 44 base moulding measures 5.250" wide by .750" thickness, permitting the detail to be machined out of four-quarter lumber. The modern profile is comprised of a four-inch broad flat line with a 1/4" rounded edge in the left center, attached to a 1-1/4" broad line segment with a 1/4" radius edge on the right side of the pattern. We offer a similar style door casing/chair rail in a slightly larger size for your review and consideration, chair rail 5.500" - 12.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.656
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$367.00
$343.00
Total:
$710.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$391.00
$367.00
Total:
$758.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$415.00
$391.00
Total:
$806.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
