Baseboard 5-1/8" - 9
Baseboard 5-1/8" - 9

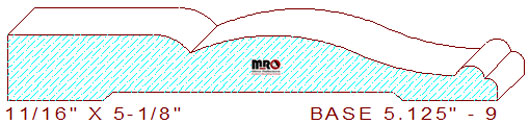

This distinguished baseboard 5-1/8" - 9 measures 5.125" width by .687" thickness, allowing a 5-3/8" wide blank of four-quarter lumber for milling on an industrial moulder. The beautiful profile comprises a 1-29/32" broad flat line with a ½" rolled inner edge on the top left. The radius connects to a 2-5/32" convex arc tangent to a 2-5/8" concave semicircle creating the s-shaped curvature in the center. The remaining portion consists of a half-elliptical-shaped bead with a 1/8" quarter-round on the right side of the design.
Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these milling operations.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.125
Depth of Cut: 0.687
Bottom Cutter Head
Width: 5.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
