Baseboard 5-1/8" - 3
Baseboard 5-1/8" - 3

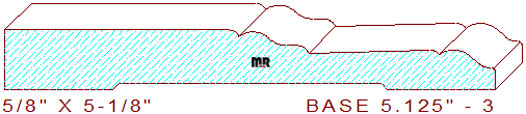

This mid-sized baseboard 5-1/8" - 3 measures 5.125" width by .750" thickness, enabling a 5-3/8" wide blank of four-quarter lumber for machining on an industrial-grade molder. The designer profile contains a 2-7/16" wide horizontal fillet with a 7/64" rolled inner edge on the top left. The rounded edge connects to a three-tangent radius downsloping wave-like curvature joined by a slightly upsloping angled line in the center. The remaining portion of the design consists of a two-tangent radius s-shaped curvature with a 3/64" eased edge.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.125
Depth of Cut: 0.592
Bottom Cutter Head
Width: 5.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
