Baseboard 5" - 121
Baseboard 5" - 121

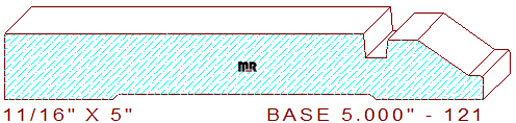

This interesting baseboard 5" - 121 measures 5.000" width by .687" thickness, enabling a 5-1/4" wide blank of four-quarter lumber for machining on an industrial moulder. The stylish profile contains a 3-3/8" broad flat line on the top center. The line connects to a 1/4" wide sunken fillet at a 1/4" distance down on the left and a 3/16" depth on the right. Merged with a 5/16" flat line, a 35.218-degree chamfer, and a 5/32" fillet with a 3/64" eased edge, leaving a 1/4" thickness dimension on the design's right side. We offer a few other same-size patterns with similar design characteristics for your review and consideration,
baseboard 5.000" - 12 and
baseboard 5.000" - 42.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.563
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
